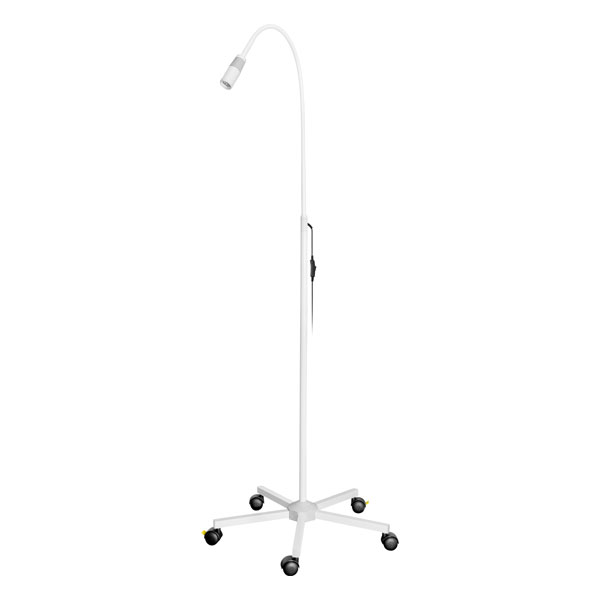

LED Examination Lamp

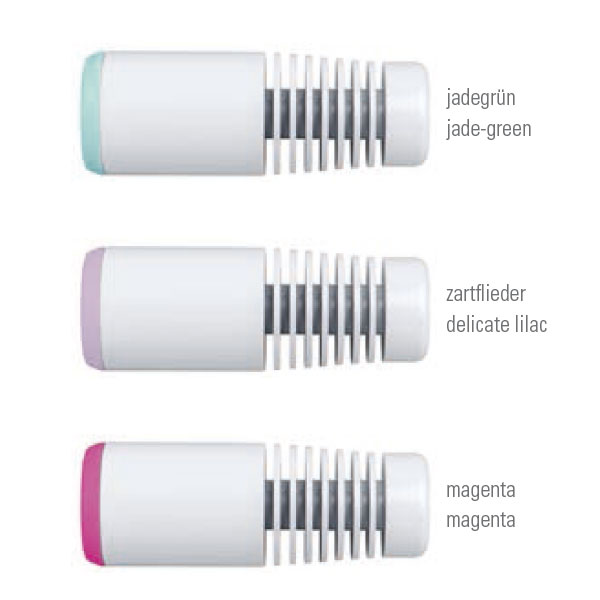

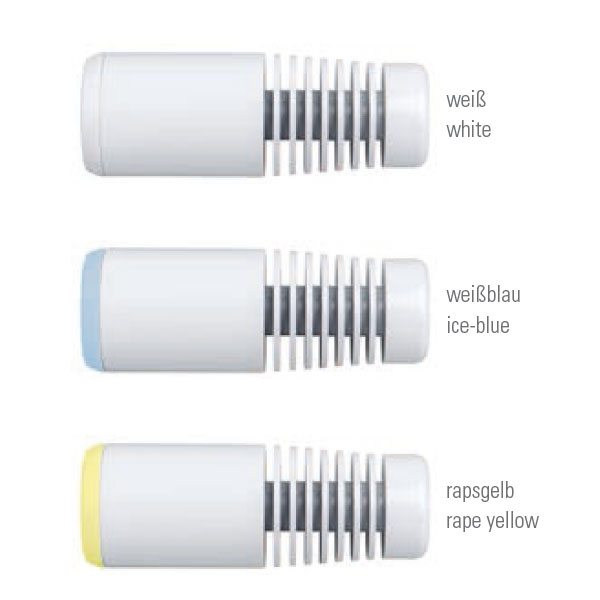

LED Untersuchungsleuchte Version 1LED Untersuchungsleuchte Version 2 LED Examination Lamp detail1 LED Examination Lamp detail2 led untersuchungsleuchte ice blue led untersuchungsleuchte colors led untersuchungsleuchte colors LED Examination Lamp, upper part ice-blue, stand white LED Examination Lamp, upper part rape yellow, stand white  Handle

Modern practice examination lamp with energy saving LED technology. With an illuminance of approx. 50.000 lux at 30 cm working distance, the LUXAMED® examination lamp ensures optimum illumination for a professional examination.


  • 15 V / 10 W LED Lamp with 4 high-power LEDs
  • Illuminance: approx. 50.000 Lux / 30 cm working distance
  • aluminium illumination head for optimal heat convection and thermal radiation
  • service life: approx. 50.000 hours
  • Colour temperature: approx. 4.200 K
  • Gooseneck construction with 90 cm long neck, neck remains in desired position
  • maximum working area: 165 cm
  • robust, non-tilting 5-foot-stand, made from metal (powder-coated)
  • multifunction plug (EU/UK/US)
  • Version 1: tube height 850 mm, total height 930 mm or alternatively
  • Version 2: tube height 500 mm, total height 580 mm with short stand

Item numbers

U1.011.014 LED Examination Lamp, white, with short stand
U1.111.014 LED Examination Lamp, white
U1.131.014 LED Examination Lamp, white / ice-blue
U1.141.014 LED Examination Lamp, white / colza yellow
U1.151.014 LED Examination Lamp, white / jade-green
U1.161.014 LED Examination Lamp, white / delicate lilac
U1.171.014 LED Examination Lamp, white / magenta
U5.121.114 Handle
